Product Details:
Payment & Shipping Terms:
|
Type: | Thread Forming Screw / Taptite Screw | Grade: | Stainless Steel 304, 316, 18-8, 410 |
---|---|---|---|
Finish: | Plain Or Passivated | Head Type: | Pan |
Drive Type: | Square / Robertson | Thread Type: | Thrilobular (S-tite, C-tite) |
Standard: | JIS, ANSI, DIN 7500 | Size: | M2 ~ M6, #2 ~ 1/4" |
Length: | 4 ~ 100mm, 5/32 ~4" |

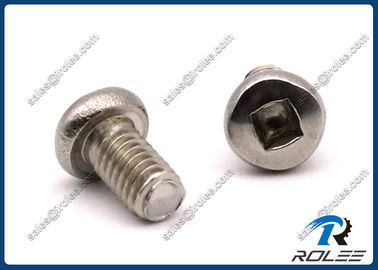

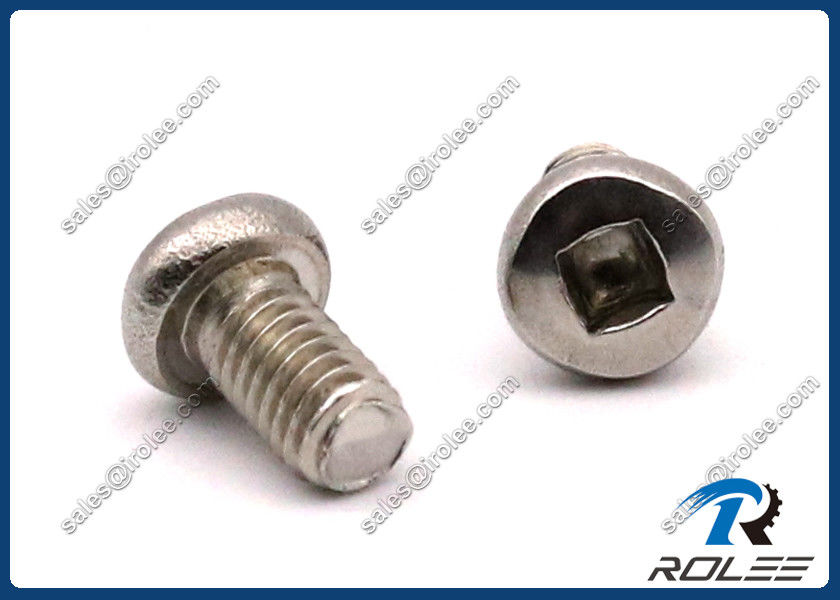

304/316/410 Stainless Square Pan Head Taptite Tri-lobular Thread Forming Screws
These screws have a trilobular shank that presses tightly as it forms threads, so screws resist loosening in soft metals such as brass, aluminum, and copper, etc. Hardened martensitic stainless 410 thread rolling screws can be used to drill steel.
Pan heads are slightly rounded with short vertical sides. Square drive is designed to reduce the risk of cam-out and allow single-handed installation.
Specification
Type | Thread Forming Screw/Taptite Screw |
Grade | SUS304, SUS316, SUS410(hardened) |
Head Type | Pan Head |
Drive Type | Square / Robertson |
Thread Type | Trilobular (S-tite / C-tite) |
Size | M2 ~ M6, #2 ~ 1/4" |
Length | 4 ~ 100mm, 5/32 ~4" |
Standard | DIN 7500, GB, ANSI, JIS |
Stock | Unavailable |
Contact
If you're insterested in our stainless steel philips pan head thread forming taptite screw, please do not hesitate to send us email or call us at +8615867456779(Mobile)directly.
For stock, we suggest you double check from us before placing order, thank you!
